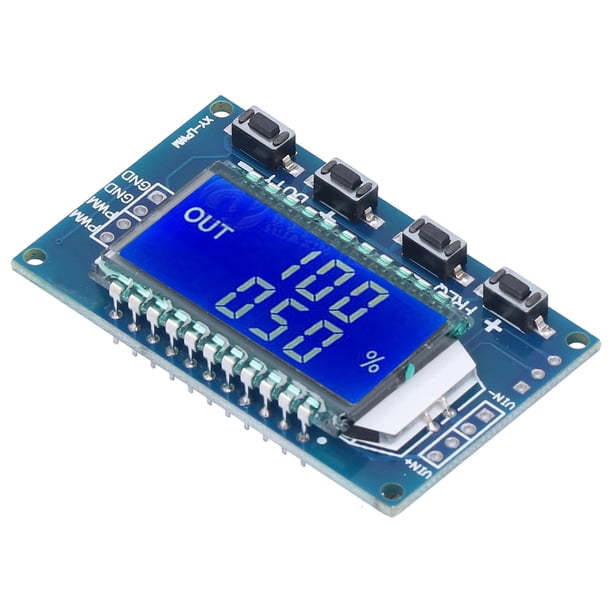

Name: Duty Cycle Module, Serial Communication LCD Display 3.3~30V 1HZ~150KHZ Signal Generator For Motor Control Driver For Experimental Development ANGGREK PWM Module
Brand: Anggrek
SKU: 00593980249373
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar baja la app - 080726

title_shipToHome_not_available

Cable Calibre 12 THW-LS / THHW-LS Iusa  100m Blanco

title_shipToHome_date_delivery

Refrigerador 10 Pies Midea Blue Steel Top Mount

Router Portátil Inalámbrico Quamtum MIFI HS1 BAIT

Microfono De Condensador De Estudio Rode Nt1 5ta Generacion

Extension USO RUDO Igoto NARANJA Exterior 16Awg 30M

Alambre THW-LS/THHW-LSCERoHS IUSA 100 M Rojo 10 AWG

Regulador de Voltaje Koblenz ER -2000

Refrigerador Hisense 7 Pies Plateado RR63D6WGX

TENIS NIÑO DC SHOES ADBS3003686DW SIMI ROJO 17-22

Lona Impermeable Reforzada AKSI Polietileno 3x3m Verde

Repetidor Steren COM-852

Regulador KOBLENZ RS-1410 8 Contactos 1410VA 700Watts

Protector de Voltaje Steren 920-010

Cable Calibre 12 THW-LS / THHW-LS Iusa  100m Negro

Regulador de Voltaje Steren 1000 Watts modelo REG-1050

Refrigerador 14 Pies Mabe con Despachador Black Mate

Lona Impermeable Reforzada Polietileno Maxtool 6x12m Roja

Compensador y regulador de voltaje de 2000 W para electrodomésticos Steren 920-200

Cable USB A a USB C Ugreen 480 Mbps Reforzado de 1 m color negro

Regulador ER-2300 VA Koblenz Negro 1000w

Supresor De Picos 125v 15a 1 Entrada 270j Sp1 Surtek

Cable THW-LS/THHW-LS CE RoHS IUSA 8 AWG en Caja 100 M Rojo

Regulador Koblenz ER-2550 1 Pieza

Refrigerador 29 Pies LG French Door Acero Inoxidable

Complementos para tu compra

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

<div>Producto de importación$$Specification:Item Type: Signal Generator Module$$Material: Plastic$$Frequency range is divided into four, automatic switching:$$1.XXX without decimal point: the smallest unit is 1Hz, in the range 1Hz ~ 999Hz;$$2.X.XX one hundred decimal point is minimum unit 0.01Khz, ranging 1.00Khz ~ 9.99Khz;$$3.XX.X ten in decimal: minimum unit is 0.1kHz; range 10.0KHz ~ 99.9KHz$$4.X.X.X decimal in ten and one hundred: minimum unit is 1Khz; range 1KHz ~ 150KHz$$e.g. frequency display: 100 indicates that the PWM output pulse of 100Hz;$$1.01 represents the PWM output pulse 1.01K;$$54.1 represents the PWM output pulse 54.1KHz;$$1.2.4 indicates that the PWM output pulse of 124KHz;$$Duty cycle range: 0 to $$All setup parameters, power down save.$$$$Module Parameters:$$Working Voltage: 3.3 ~ 30V$$Frequency range: 1Hz ~ 150KHz$$The frequency accuracy: in each range accuracy is about 2%$$Load capacity signal: output current of about 5 ~ 30ma$$The output amplitude: PWM amplitude equal to the supply voltage$$Ambient temperature: -20 ~ + 70  degrees Celsius $$$$The Serial Port Control MCU TTL level communications$$Communication Standard: 9600 bps Data bits: 8$$Stop Bits: 1$$Parity Bit: None$$Flow Control: None$$$$1. The PWM frequency$$"F101": Set the frequency of 101 HZ 001 ~ 999$$"F1.05": Set the frequency of 1.05 KHZ 1.00 ~ 9.99$$"F10.5": Set the frequency 10.5KHZ 10.0 ~ 99.9$$"F1.0.5": Set the frequency of 105KHZ 1.0.0 ~ 1.5.0$$2. The PWM duty ratio$$"DXXX": Set the PWM duty cycle is XXX; 001 ~ 100$$For example D050, set the PWM duty ratio is 50%$$3. Reads the set parameters$$Send "read" string read parameter settings.$$Setting successful return: DOWN;$$Setting failback: FALL.$$$$Package List:1 x Signal Generator Module<br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Scope Of Application: Used as square wave signal generator to generate square wave signals for experimental development and use to generate square wave signals for controlling motor drivers.</li><li>Generate Adjustable Pulses: This module generates adjustable pulses for MCU use and control related circuits applications such as PWM dimming and speed regulation.</li><li>Easy To Operate: PWM output, this module can set the frequency and duty cycle separately, with wide frequency range and high accuracy.</li></ul></li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

Duty Cycle Module, Serial Communication LCD Display 3.3~30V 1HZ~150KHZ Signal Generator  For Motor Control Driver For Experimental Development ANGGREK PWM Module

<ul><li>Scope Of Application: Used as square wave signal generator to generate square wave signals for experimental development and use to generate square wave signals for controlling motor drivers.</li><li>Generate Adjustable Pulses: This module generates adjustable pulses for MCU use and control related circuits applications such as PWM dimming and speed regulation.</li><li>Easy To Operate: PWM output, this module can set the frequency and duty cycle separately, with wide frequency range and high accuracy.</li></ul>
