<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. This Constant Current Power Supply Volt Reducer Module with a wide range of input from 6V to 40V,the step-down converter can accurately adjust output voltage and current.
2. The efficiency max can be up to 95%,measured at 20A,converting 24V to 12V.
3. The buck converter designed with dual MOS tube of large current 75V / 80A.
4. Adopt with high frequency low resistance electrolytic capacitor for input and output use,low ripple, stable output.
5. Board mounted 2 heat sink,enhance dissipation function for the step dowm module.
Specification:
Features:
This Constant Current Power Supply Volt Reducer Module with a wide range of input from 6V to 40V,the step-down converter can accurately adjust output voltage and current.
The efficiency max can be up to 95%,measured at 20A,converting 24V to 12V.
The buck converter designed with dual MOS tube of large current 75V / 80A.
Adopt with high frequency low resistance electrolytic capacitor for input and output use,low ripple, stable output.
Board mounted 2 heat sink,enhance dissipation function for the step dowm module.
Wiring is convenient with these large current 30A screw terminals.
When there is a big difference between input and output voltage,please decrease power and current.
Specifications:
Material: FR4
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit conservation: Self-recovery(cannot short circuit for long time)
Item Size: 60*53*27mm / 2.4*2.1*1.1in
Item Weight: 89g / 3.1oz
Package Weight: 92g / 3.2oz
Package Size: 70*60*30mm / 2.8*2.4*1.2in
Wiring instructions:
VO +: output positive
VO-: output negative
+ IN: Input positive
- IN: Input negative
CV: Output voltage regulation
CC: Output current regulation
EN: enable,low level to turn off output; pause,high voltage level is valid
When the input and output are grounded,the no-load CV output is constant voltage,and the CC output is constant current.
Package List:
1 * 300W 20A Step Down Module
Package List:
1 * 300W 20A Step Down Module</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

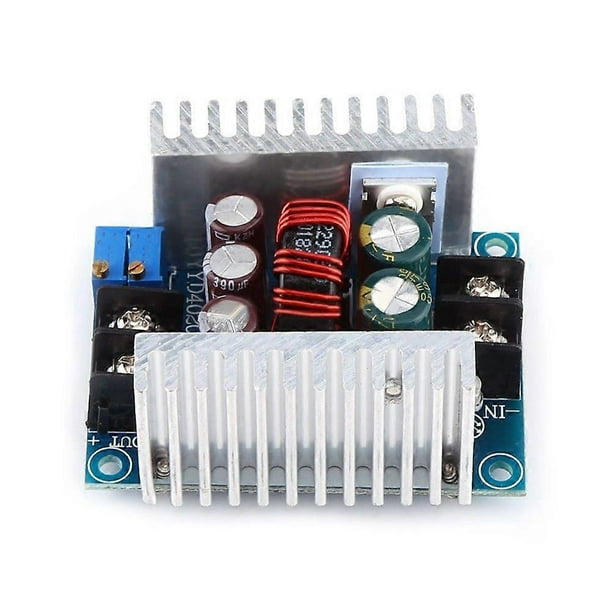

DC-DC Buck Converter 300W 20A Step Dowm Module Adjustable Voltage 6 40V To 1.2 36V Power Supply Volt Reducer
