<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、Adopt high quality all metal gears, wear‑resistant, quiet, and long service life 2、The motor has small size and large torsion, which can provide stable performance during operation 3、The pure copper coil stator and rotor adopt pure copper coil, the deceleration resistance and conductivity are strengthened, so that the motor torsion is increased 4、The brushless motor has overload current protection which can protect it to avoid burning out during the use of the motor and increase the service life of the motor 5、Available in 5 styles no‑load speed for choices, great workmanship can provide stable performance 6、Suitable for various industries such as micro machinery, various CNC machine tools, high‑accuracy measuring instruments, electronic manufacturing equipment and financial machinery
Item Type: Brushless Motor Model: XD-37GB3525 Material: Copper Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil below 70℃. Insulation Class: Class B(130℃) Operating Environment Temperature: Motor: -10~+40℃ (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: Yes Notes: 1 Overload and Locked Rotor: When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor. 2 When Running at Low Speed: For DC motors, carbon brushes are generally used. The rotating commutator rubs against the carbon brushes, creating sparks at the notches of the commutator. When the motor is running at a low speed, the carbon brush powder that is easily generated by the friction between the commutator and the carbon brush will accumulate in the commutator slot, causing a short circuit and burning the motor and driver. Please be very careful. 3 Precautions on the PWM Controller: When using the PWM controller, the carbon brushes have a shorter service life than in the rated voltage (or fixed voltage) state. In addition, depending on the frequency of use, carbon brushes may wear out quickly. The frequency of PWM control of DC motors is generally 10-20KHz, and repeated ON-OFF during PWM control can save energy. However, the parts used in the motor are similar to the frequency of use, which will cause resonance and heat. Please pay full attention to use. In the PWM control state, when using the built-in motor of the electrolytic capacitor, the motor may not rotate at a certain fixed frequency. Please try to use varistor to hide the motor. (Need to do related tests) 4 Regarding Inertia and Braking: After the motor is powered off, the rotor will still rotate due to inertia, which is the inertia of the DC motor. If you want to stop the rotation immediately, you can short-circuit the positive and negative terminals after turning off the power. The use of this kind of brake is to</li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

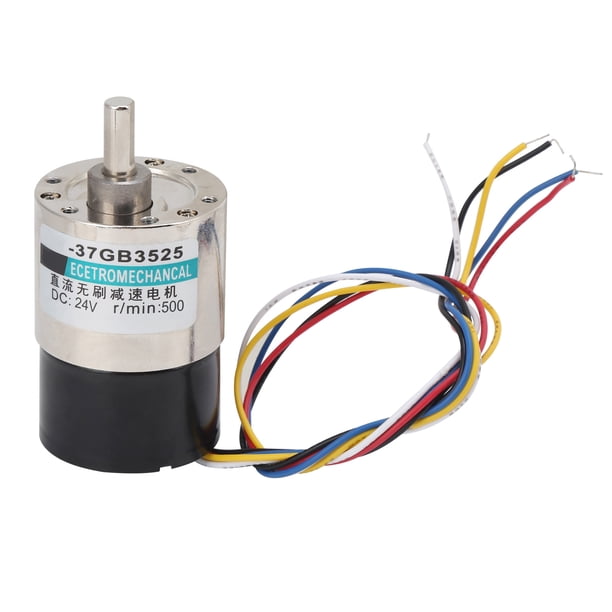

DC Brushless Motor CW/CCW Speed Reduction Large Torsion 24V for Micro Machinery XD‑37GB3525500rpm/min

1、Adopt high quality all metal gears, wear‑resistant, quiet, and long service life 2、The motor has small size and large torsion, which can provide stable performance during operation 3、The pure copper coil stator and rotor adopt pure copper coil, the deceleration resistance and conductivity are strengthened, so that the motor torsion is increased 4、The brushless motor has overload current protection which can protect it to avoid burning out during the use of the motor and increase the service life of the motor 5、Available in 5 styles no‑load speed for choices, great workmanship can provide stable performance 6、Suitable for various industries such as micro machinery, various CNC machine tools, high‑accuracy measuring instruments, electronic manufacturing equipment and financial machinery
Item Type: Brushless Motor Model: XD-37GB3525 Material: Copper Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil below 70℃. Insulation Class: Class B(130℃) Operating Environment Temperature: Motor: -10~+40℃ (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: Yes Notes: 1 Overload and Locked Rotor: When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor. 2 When Running at Low Speed: For DC motors, carbon brushes are generally used. The rotating commutator rubs against the carbon brushes, creating sparks at the notches of the commutator. When the motor is running at a low speed, the carbon brush powder that is easily generated by the friction between the commutator and the carbon brush will accumulate in the commutator slot, causing a short circuit and burning the motor and driver. Please be very careful. 3 Precautions on the PWM Controller: When using the PWM controller, the carbon brushes have a shorter service life than in the rated voltage (or fixed voltage) state. In addition, depending on the frequency of use, carbon brushes may wear out quickly. The frequency of PWM control of DC motors is generally 10-20KHz, and repeated ON-OFF during PWM control can save energy. However, the parts used in the motor are similar to the frequency of use, which will cause resonance and heat. Please pay full attention to use. In the PWM control state, when using the built-in motor of the electrolytic capacitor, the motor may not rotate at a certain fixed frequency. Please try to use varistor to hide the motor. (Need to do related tests) 4 Regarding Inertia and Braking: After the motor is powered off, the rotor will still rotate due to inertia, which is the inertia of the DC motor. If you want to stop the rotation immediately, you can short-circuit the positive and negative terminals after turning off the power. The use of this kind of brake is to
