<div>codificador incremental con un diámetro de 38 mm. § Tamaño del pequeño, peso ligero, estructura compacta, instalación fácil</div>

<ul><li>Producto de importación</li><li>Specification:Features:</li><li>       incremental  encoder with diameter of 38mm.        Internal ASIC devices, high reliability, long life, strong anti - interference performance.        Stainless steel spindle with higher stability and protection ability, metal shell is more solid and impact resistance.        Small size, light weight, compact structure, easy installation.        It uses corresponding power supply voltage DC5 ~ 26V open collector output type.        It can realize axial load, radial shaft loading 30N, thrust shaft loading 20N.        With load short circuit protection, power supply reverse wiring protection.     </li><li> Specification:</li><li> Item Name: Incremental  encoder</li><li> Model: E6B2-CWZ6C</li><li> Material: lead alloy shell, aluminum body</li><li> Input voltage: DC5 ~ 26Vopen-collector output type</li><li> Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output</li><li> Output phase: A, B, Z phase</li><li> Outer diameter: 38 mm</li><li> Thrust shaft diameter: 6mm</li><li> Standard length of wiring wire: 2m</li><li> Resolution pulse/rotation : 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000 optional</li><li> Wiring method:</li><li> Brown line: DC5-26V positive pole</li><li> Blue line: 0V negative pole</li><li> Black line: Aphase</li><li> White line: Bphase</li><li> Orange line: Zphase</li><li> Shielding network cable: N.C ground</li><li> Phase Difference Between Outputs: 90°±45° between A and B 1/4 T ± 1/8 T</li><li> Output Configuration: NPN open-collector output</li><li> Output Capacity:  applied voltage: 30 VDC .; synchronous current: 35 mA .; residual voltage: 0.4 V .at synchronous current of 35 mA</li><li> Maximum Response Frequencyx3: 100kHz</li><li> Rise and Fall Times of Output: 1 μ. Control output voltage: 5 V, Load resistance: 1 k Ohm , Cable length: 2 m .</li><li> Starting Moment of Force: 0.9 mN.m .</li><li> Moment of Inertia: 1x10-6 kg.m² .; 3x10-7 kg.m² . at 600 P/R .</li><li> Radial Shaft Loading: 30N</li><li> Thrust Shaft Loading: 20N</li><li> Maximum Permissible Rotating Speed: 6,000r/min</li><li> Protection Circuits: load short circuit protection, power supply reverse wiring protection</li><li> Ambient Temperature Range: operating: -10 to 70 degrees Celsius ; storage: -25 to 85 degrees Celsius  with no icing</li><li> Operating/Storage Ambient Humidity Range: 35% to 85% with no condensation</li><li> Insulation Resistance: 20  milliohm  min. at 500 VDC between current-carrying parts and case</li><li> Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case</li><li> Vibration ResistanceDestruction: 10 to 500 Hz, 2mm or 150 m/s²  double amplitude for 11 min 3 times each in X, Y, and Z directions</li><li> Shock ResistanceDestruction: 1,000m/s² 3 times each in X, Y, and Z directions</li><li> </li><li> Package List:</li><li> 1x Encoder</li><li> 3x tornillo</li><li> 1x instrucciones</li><li></li><li>Package List:1x Encoder<br>3x tornillo<br>1x instrucciones<br>Producto de importación No hay factura disponible;</li></ul>

Cantidad de Piezas

País de Origen

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Tipo de Codificador de Interruptor

Condición

Número de Piezas

Material

Nombre del Modelo Comercial

Ancho del Producto Ensamblado

Gama Color

Accesorio

Altura del Producto Ensamblado

brand

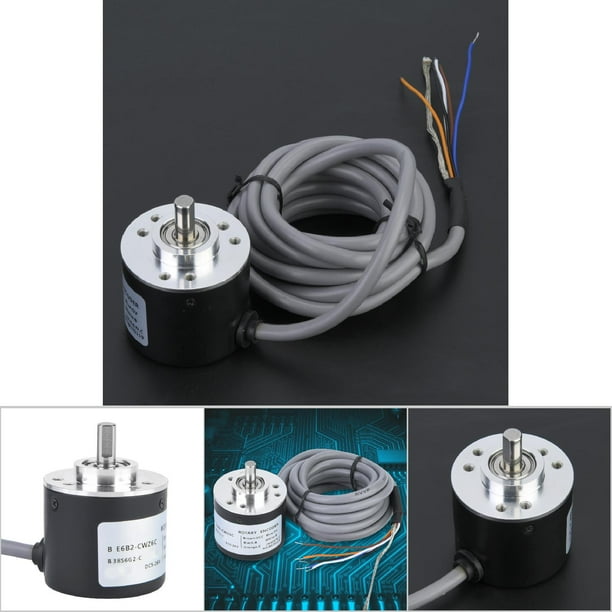

Codificador Rotatorio Incremental De 38 Mm De Diámetro, Alta Confiabilidad, Antiinterferencias, Fácil Instalación, Carcasa Metálica, Protección Contra Cortocircuitos Para

Producto de importación$$Specification:Features:$$       incremental  encoder with diameter of 38mm.        Internal ASIC devices, high reliability, long life, strong anti - interference performance.        Stainless steel spindle with higher stability and protection ability, metal shell is more solid and impact resistance.        Small size, light weight, compact structure, easy installation.        It uses corresponding power supply voltage DC5 ~ 26V open collector output type.        It can realize axial load, radial shaft loading 30N, thrust shaft loading 20N.        With load short circuit protection, power supply reverse wiring protection.     $$ Specification:$$ Item Name: Incremental  encoder$$ Model: E6B2-CWZ6C$$ Material: lead alloy shell, aluminum body$$ Input voltage: DC5 ~ 26Vopen-collector output type$$ Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output$$ Output phase: A, B, Z phase$$ Outer diameter: 38 mm$$ Thrust shaft diameter: 6mm$$ Standard length of wiring wire: 2m$$ Resolution pulse/rotation : 100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000 optional$$ Wiring method:$$ Brown line: DC5-26V positive pole$$ Blue line: 0V negative pole$$ Black line: Aphase$$ White line: Bphase$$ Orange line: Zphase$$ Shielding network cable: N.C ground$$ Phase Difference Between Outputs: 90°±45° between A and B 1/4 T ± 1/8 T$$ Output Configuration: NPN open-collector output$$ Output Capacity:  applied voltage: 30 VDC .; synchronous current: 35 mA .; residual voltage: 0.4 V .at synchronous current of 35 mA$$ Maximum Response Frequencyx3: 100kHz$$ Rise and Fall Times of Output: 1 μ. Control output voltage: 5 V, Load resistance: 1 k Ohm , Cable length: 2 m .$$ Starting Moment of Force: 0.9 mN.m .$$ Moment of Inertia: 1x10-6 kg.m² .; 3x10-7 kg.m² . at 600 P/R .$$ Radial Shaft Loading: 30N$$ Thrust Shaft Loading: 20N$$ Maximum Permissible Rotating Speed: 6,000r/min$$ Protection Circuits: load short circuit protection, power supply reverse wiring protection$$ Ambient Temperature Range: operating: -10 to 70 degrees Celsius ; storage: -25 to 85 degrees Celsius  with no icing$$ Operating/Storage Ambient Humidity Range: 35% to 85% with no condensation$$ Insulation Resistance: 20  milliohm  min. at 500 VDC between current-carrying parts and case$$ Dielectric Strength: 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case$$ Vibration ResistanceDestruction: 10 to 500 Hz, 2mm or 150 m/s²  double amplitude for 11 min 3 times each in X, Y, and Z directions$$ Shock ResistanceDestruction: 1,000m/s² 3 times each in X, Y, and Z directions$$ $$ Package List:$$ 1x Encoder$$ 3x tornillo$$ 1x instrucciones$$$$Package List:1x Encoder<br>3x tornillo<br>1x instrucciones<br>Producto de importación No hay factura disponible;
