<ul><li>Feature:
1. The counting methods of this counter are contact counting, DC level counting and sensor counting.
2. Adopt mathematical filter counting, wide counting range, the highest count is 999999, and it has power failure memory function.
3. The sensing distance is 10mm, and counting starts when a magnetic metal object passes through the sensor.
4. The electronic digital display panel displays data with clear readings and accurate counting.
5. Widely used in petroleum, chemical, textile, machinery, mining, agriculture, food, printing and other industries.
Specification:
Item Type: Digital Display Counter
Product Model: BEM-6H-12J-CT
Counter Model: JDM11-6H
Power Consumption: ≤10W
Counting Range: 1-999999
Counting Speed: 10 times/s
Working Method: Continuous working system
Counting Method: Contact count, level count and sensor count
Operating Temperature: -5℃-45℃
Storage Temperature: -20℃-70℃
Reset Time: ≥0.5s
Power Restart: ≥1s
Sensing Distance: Approx. 10mm / 0.4in
Detection Object: Magnetic metal object
Reset Method: Panel reset
Counting Error: ≤1
Data Retention: ≥10 years
Power Cord Length: Approx. 1.5m / 4.9ft
Sensor Cable Length: Approx. 1.5m / 4.9ft
Application: Widely used in petroleum, chemical, textile, machinery, mining, national defense, agriculture, food, printing and other industries; but for the control of valuable equipment or the situations where the product is damaged and safety is endangered, please do a secondary protection.
Working Principle: The sensing distance is 10mm. When a magnetic metal object passes through the sensor, it starts counting, and counts once every time it passes.
How to Use:
The contact input should be reliable to avoid malfunction caused by contact bounce.
Reset Function: Press the panel reset button at any time. The counter returns to the initial state, and the reset time is ≥0.5 seconds
The maximum speed of the calculator is the maximum speed when the duty ratio is 1: 1, and the pulse width of on or off is greater than 50 milliseconds.
In the control system, the counter control line is wired separately from other power lines; in a strong current environment and the counting terminal wire is long, please use a shielded wire..

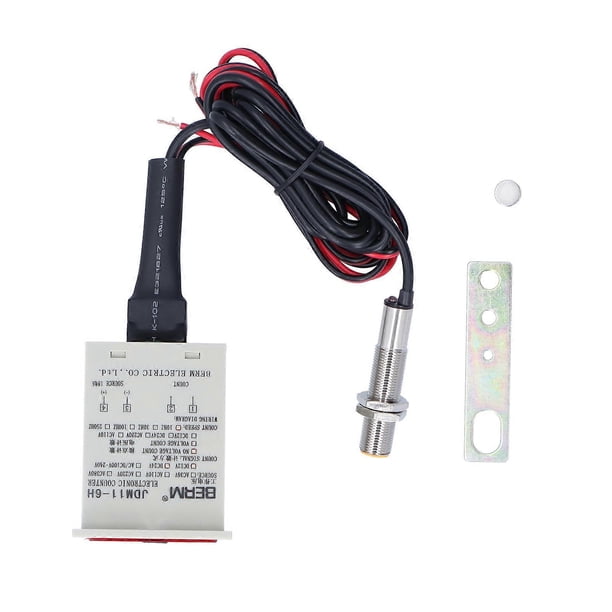

Package List:
1 x Counter1 x Metal Sheet1 x Magnet</li></ul>
