<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Item Type: AC Synchronous Motor

Model: XD60KTYZ

Material: Copper

Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in

Protection Level: IP20

Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M

Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for a second, with a voltage of 1800V, there is no abnormality.

Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil between 75-80

Insulation Class: Class E(130)

Operating Environment Temperature: Motor: -10~+40 (no icing)

Use Environment Humidity: 85% or less (no condensation)

CW/CCW: Yes

Speed Adjusted: No

ModelVoltage(VRotating speedrpm/minNormal torsion kgfcmlong-time working Larger torsionkgfcmintermittent workPowerW

XD60KTYZAC220V3051014

502.5514

801.7314

1101.2214

AC110V3051014

502.5514

801.7314

1101.2214</li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

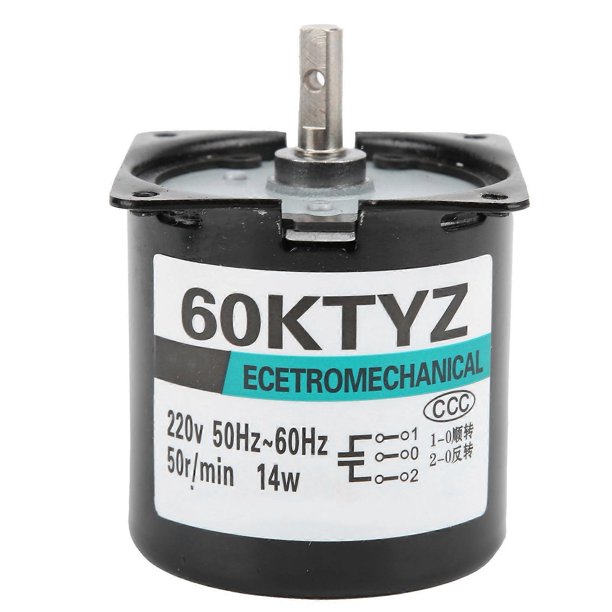

AC Synchronous Motor 14W Permanent Magnet Low Speed 2?Way High Torsion Central Shaft XD60KTYZ50rpm/min AC220V

Item Type: AC Synchronous Motor

Model: XD60KTYZ

Material: Copper

Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in

Protection Level: IP20

Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M

Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for a second, with a voltage of 1800V, there is no abnormality.

Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance method to measure the temperature rise of the coil between 75-80

Insulation Class: Class E(130)

Operating Environment Temperature: Motor: -10~+40 (no icing)

Use Environment Humidity: 85% or less (no condensation)

CW/CCW: Yes

Speed Adjusted: No

ModelVoltage(VRotating speedrpm/minNormal torsion kgfcmlong-time working Larger torsionkgfcmintermittent workPowerW

XD60KTYZAC220V3051014

502.5514

801.7314

1101.2214

AC110V3051014

502.5514

801.7314

1101.2214
