<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Working voltage:DC 6-24V
Working current:60-70MA
Standby current:1UA
Load current :AC 250V/10A,DC 30V/10A
Trigger mode:Low pulse trigger

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1.VCC: positive power supply (VCC)
2.GND: negative power supply (GND)
3.T: Low pulse trigger
Relay outputs:
1.NO: normally open relay interface
2.COM: Common Interface Relays
3.NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
MCU development board
Automotive electronics
Industrial equipment
Emergency lighting
Smart Home
Toy car
Motor
LED
Size:4.8x1.1cm/1.89x0.43inch
Colour:As shown
Material:PC+Metal

Package Contents:
5x 6-24V Flip-Flop Latch Relay

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

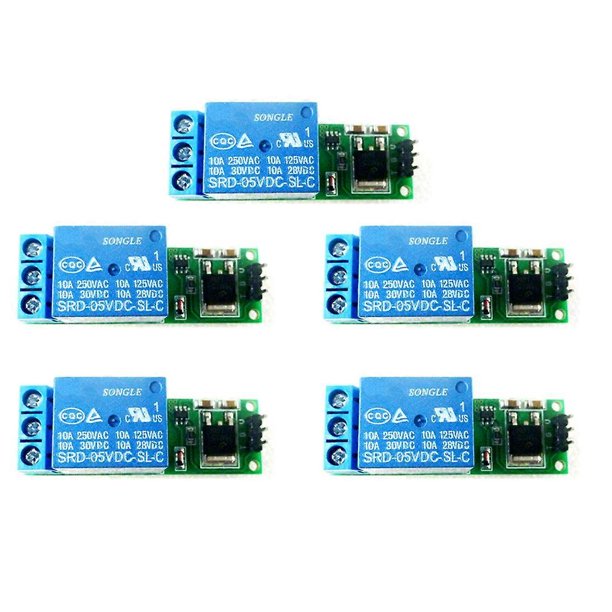

5Pcs 6-24V Flip-Flop Latch Relay Bistable Self-Locking Low Pulse Trigger Module

Working voltage:DC 6-24V
Working current:60-70MA
Standby current:1UA
Load current :AC 250V/10A,DC 30V/10A
Trigger mode:Low pulse trigger

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1.VCC: positive power supply (VCC)
2.GND: negative power supply (GND)
3.T: Low pulse trigger
Relay outputs:
1.NO: normally open relay interface
2.COM: Common Interface Relays
3.NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
MCU development board
Automotive electronics
Industrial equipment
Emergency lighting
Smart Home
Toy car
Motor
LED
Size:4.8x1.1cm/1.89x0.43inch
Colour:As shown
Material:PC+Metal

Package Contents:
5x 6-24V Flip-Flop Latch Relay

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
