<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>220V Mini Relay Receiver Wireless Smart Switch RF 433Mhz Wall Panel Switch with Remote Control Wiring-free Panel Lighting
Product parameters:
Working voltage: AC 90-250V 50/60Hz
Load current: ≤10A, load power: 1100W
Standby current: 3.6mA5mA
RF frequency: 433MHz
RF working mode: superheterodyne reception
Receive sensitivity: &gt;97dbm
Remote control receiving distance: more than 50 meters in open space
Decoding method: MCU software decoding;
Modulation method: ASK (anti-interference, strong transmission performance)
The number of remote controllers that can be stored: 20
Support remote control type: intelligent learning type 1527 learning code, 2262 fixed code (customizable rolling code);
Output type: 1-way relay switch signal, with load current less than 10A;
A variety of working modes: jog, self-locking, interlocking, delay off (5 seconds, 10 seconds, 15 seconds, 20 seconds optional), light-on function when incoming calls;
Working environment: -2080.
Color: black, white
Wiring method: fixed terminal
Output wiring type: neutral wire, live wire
Specifications:
About Working mode:
[Jog mode]Press the remote control and do not release the line to power on, release the remote control line to disconnect;
[Self-locking mode]Press the remote control line to power on, and press the remote control again to disconnect the line;
[Interlock mode]Press one of the buttons on the remote control (such as the A button), the line is powered on, and then press another button on the remote control (such as the B button) to disconnect;
[Jog delay off mode]Press the remote control line to power on, release the remote control to start timing, and automatically disconnect the line after 5 seconds, 10 seconds, 15 seconds, 20 seconds (4th gear);
[The function of turning on the lights for incoming calls]That is, the whole line automatically pulls in after power is supplied, also known as the function of turning on the lights for incoming calls.
Package Included:
1 x 433Mhz Receiver Module

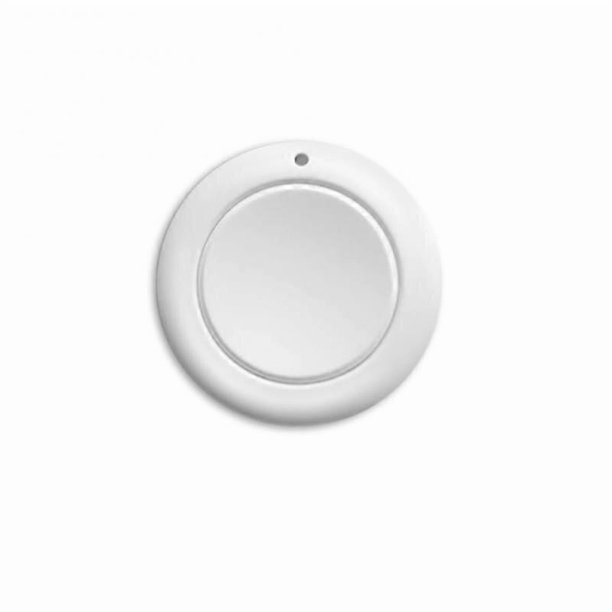

1 x Feel free to stick the remote control
(optional)
Notes:
1. Do not operate with power on, you should turn off the power first to operate, and use it after the test is confirm</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Color

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

220V Mini Relay Receiver Wireless Smart Switch RF 433Mhz Wall Panel Switch

220V Mini Relay Receiver Wireless Smart Switch RF 433Mhz Wall Panel Switch with Remote Control Wiring-free Panel Lighting
Product parameters:
Working voltage: AC 90-250V 50/60Hz
Load current: ≤10A, load power: 1100W
Standby current: 3.6mA5mA
RF frequency: 433MHz
RF working mode: superheterodyne reception
Receive sensitivity: &gt;97dbm
Remote control receiving distance: more than 50 meters in open space
Decoding method: MCU software decoding;
Modulation method: ASK (anti-interference, strong transmission performance)
The number of remote controllers that can be stored: 20
Support remote control type: intelligent learning type 1527 learning code, 2262 fixed code (customizable rolling code);
Output type: 1-way relay switch signal, with load current less than 10A;
A variety of working modes: jog, self-locking, interlocking, delay off (5 seconds, 10 seconds, 15 seconds, 20 seconds optional), light-on function when incoming calls;
Working environment: -2080.
Color: black, white
Wiring method: fixed terminal
Output wiring type: neutral wire, live wire
Specifications:
About Working mode:
[Jog mode]Press the remote control and do not release the line to power on, release the remote control line to disconnect;
[Self-locking mode]Press the remote control line to power on, and press the remote control again to disconnect the line;
[Interlock mode]Press one of the buttons on the remote control (such as the A button), the line is powered on, and then press another button on the remote control (such as the B button) to disconnect;
[Jog delay off mode]Press the remote control line to power on, release the remote control to start timing, and automatically disconnect the line after 5 seconds, 10 seconds, 15 seconds, 20 seconds (4th gear);
[The function of turning on the lights for incoming calls]That is, the whole line automatically pulls in after power is supplied, also known as the function of turning on the lights for incoming calls.
Package Included:
1 x 433Mhz Receiver Module
1 x Feel free to stick the remote control
(optional)
Notes:
1. Do not operate with power on, you should turn off the power first to operate, and use it after the test is confirm
