<ul><li>These are connectors that are used to connect multiple solar panels or groups of solar panels together in a solar field, and generally used in parallel applications. The included assembly tool allows users to tighten and separate the connectors more easily and quickly. Features: The conductor pin is made of tinned copper which can ensure excellent electrical contact. The cable connection adopts rivet and lock method, quick and simple for assembly. With excellent aging resistance and UV endurance, it can be used in harsh environment. The O-ring on the connector is perfect for sealing out water and dust to prevent corrosion. The included assembly tool makes it easy to tighten and separate the connectors. Great solution for parallel connection of multiple panels together in a solar field. Specifications: Quantity: 20 pairs Rated current: 16A (2.5㎡, AWG14), 30A (4㎡, AWG12), 52A (6㎡, AWG10) Withstand voltage: 1000V DC Typical contact resistance: 2 mΩ Suitable cable size: 2.5 mm² / 4 mm² / 6 mm² Protection class: Class Ⅱ Degree of protection: IP67 Insulation material: PC Contact material: Copper, tinned Flame class: UL94-V0 Ambient temperature range: -40°C ~ +105°C Insertion force: less than 50N Withdrawal force: more than 50N Package weight: 221g-428g / 7.8oz-15.12oz Note: The color of the key will be sent randomly (blue or orange), please in kind prevail. Package List: 20 * Pairs of Connectors 2 * Wrench</li></ul>

Dimensiones del producto ensamblado

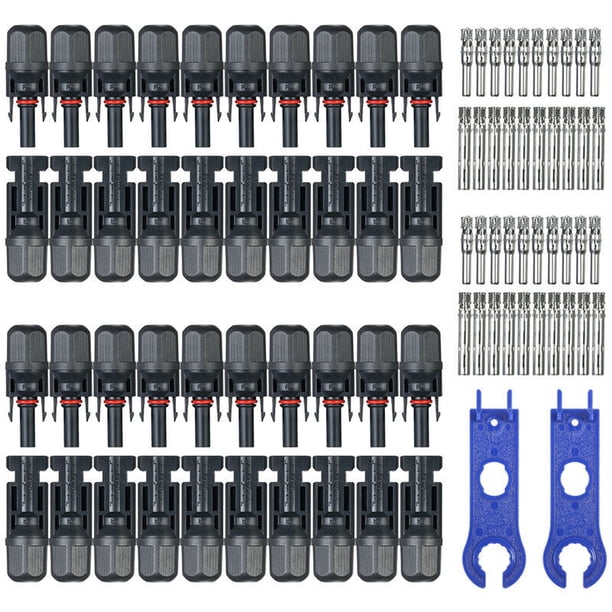

20 Pairs Solar Panel Cable Connectors with Assembly Tool, Compatible with PV Systems

Devolución hasta 30 días después de recibido.

These are connectors that are used to connect multiple solar panels or groups of solar panels together in a solar field, and generally used in parallel applications. The included assembly tool allows users to tighten and separate the connectors more easily and quickly. Features: The conductor pin is made of tinned copper which can ensure excellent electrical contact. The cable connection adopts rivet and lock method, quick and simple for assembly. With excellent aging resistance and UV endurance, it can be used in harsh environment. The O-ring on the connector is perfect for sealing out water and dust to prevent corrosion. The included assembly tool makes it easy to tighten and separate the connectors. Great solution for parallel connection of multiple panels together in a solar field. Specifications: Quantity: 20 pairs Rated current: 16A (2.5㎡, AWG14), 30A (4㎡, AWG12), 52A (6㎡, AWG10) Withstand voltage: 1000V DC Typical contact resistance: 2 mΩ Suitable cable size: 2.5 mm² / 4 mm² / 6 mm² Protection class: Class Ⅱ Degree of protection: IP67 Insulation material: PC Contact material: Copper, tinned Flame class: UL94-V0 Ambient temperature range: -40°C ~ +105°C Insertion force: less than 50N Withdrawal force: more than 50N Package weight: 221g-428g / 7.8oz-15.12oz Note: The color of the key will be sent randomly (blue or orange), please in kind prevail. Package List: 20 * Pairs of Connectors 2 * Wrench
