<div>¡El producto es muy bueno, ¡ creo que te gustará!</div>

<ul><li>1、The module uses high‑quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A. 2、Using patch optocoupler isolation, strong driving ability, stable performance; trigger current 5mA. 3、The module working voltage is available in 5V, 9, 12V, 24V. 4、The module can be triggered by a jumper to set a high level or a low level. 5、Fault‑tolerant design, even if the control line is broken, the relay will not move.
<div>Features:
<ol><li>
		The module uses high-quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A.
	</li><li>
		Using patch optocoupler isolation, strong driving ability, stable performance; trigger current 5mA.
	</li><li>
		The module working voltage is available in 5V, 9, 12V, 24V.
	</li><li>
		The module can be triggered by a jumper to set a high level or a low level.
	</li><li>
		Fault-tolerant design, even if the control line is broken, the relay will not move.
	</li><li>
		Power indicator (green), relay status indicator (red).
	</li><li>
		The interface design is user-friendly, all interfaces can be directly connected through the terminal block, very convenient.
	</li></ol>

Specification:
Module Size:50 x 41 x 18.5mm / 1.97 x 1.61 x 0.73in
Hole Diameter: 3.1mm/0.12in
Hole Interval Distance:44.5 x 35.5mm / 1.75 x 1.4in
Wiring Diagram:
DC+: Connect the positive pole of the power supply (the voltage is required by the relay, there are 5V.9V.12V and 24V selection).
DC-: connected to the negative pole of the power supply.
IN1:1 signal signal trigger terminal, you can set the high or low level control relay to pull in.
IN2: 2 channel signal trigger terminal, you can set the high or low level control relay to pull in.
Relay output:
NO1: 1 channel relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM1.
COM1:1 channel relay common interface.&nbsp;
NC1: 1 channel relay normally closed interface, short circuit connection with COM1 before the relay is closed, suspended after suction.
NO2: 2 channel relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM2.
COM2: 2 channel relay common interface.
NC2: 2-channel relay normally closed interface, short-circuit with COM2 before the relay i</div></li></ul>

Cantidad de Piezas

País de Origen

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Condición

Número de Piezas

Material

Ancho del Producto Ensamblado

Tipo de Relevador del Sistema Eléctrico

Gama Color

Altura del Producto Ensamblado

Marca

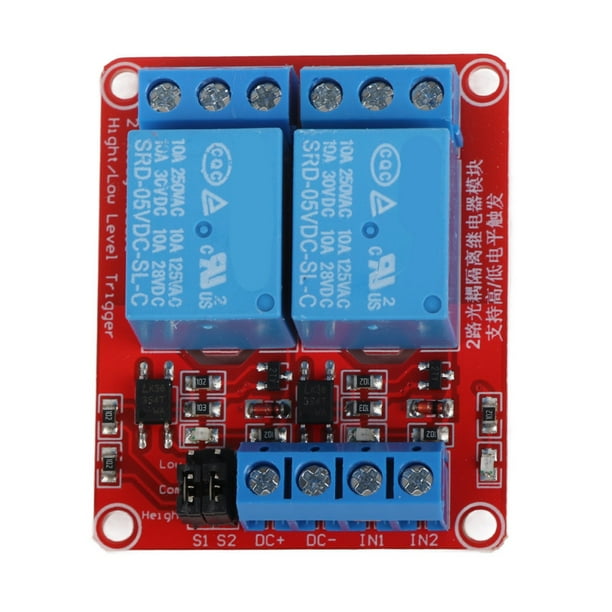

2 Channel Relay Module with Optocoupler Isolation High&Low Level Trigger Module(5V)

1、The module uses high‑quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A. 2、Using patch optocoupler isolation, strong driving ability, stable performance; trigger current 5mA. 3、The module working voltage is available in 5V, 9, 12V, 24V. 4、The module can be triggered by a jumper to set a high level or a low level. 5、Fault‑tolerant design, even if the control line is broken, the relay will not move.
<div>Features:
<ol><li>
		The module uses high-quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A.
	</li><li>
		Using patch optocoupler isolation, strong driving ability, stable performance; trigger current 5mA.
	</li><li>
		The module working voltage is available in 5V, 9, 12V, 24V.
	</li><li>
		The module can be triggered by a jumper to set a high level or a low level.
	</li><li>
		Fault-tolerant design, even if the control line is broken, the relay will not move.
	</li><li>
		Power indicator (green), relay status indicator (red).
	</li><li>
		The interface design is user-friendly, all interfaces can be directly connected through the terminal block, very convenient.
	</li></ol>

Specification:
Module Size:50 x 41 x 18.5mm / 1.97 x 1.61 x 0.73in
Hole Diameter: 3.1mm/0.12in
Hole Interval Distance:44.5 x 35.5mm / 1.75 x 1.4in
Wiring Diagram:
DC+: Connect the positive pole of the power supply (the voltage is required by the relay, there are 5V.9V.12V and 24V selection).
DC-: connected to the negative pole of the power supply.
IN1:1 signal signal trigger terminal, you can set the high or low level control relay to pull in.
IN2: 2 channel signal trigger terminal, you can set the high or low level control relay to pull in.
Relay output:
NO1: 1 channel relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM1.
COM1:1 channel relay common interface.&nbsp;
NC1: 1 channel relay normally closed interface, short circuit connection with COM1 before the relay is closed, suspended after suction.
NO2: 2 channel relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM2.
COM2: 2 channel relay common interface.
NC2: 2-channel relay normally closed interface, short-circuit with COM2 before the relay i</div>
