<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>The TCA9548A adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.There are 8 I2C interfaces on one expander, and there are eight bidirectional fer switches that can be controlled by I2C bus. This means that after 1 expander is ferred, 8 identical addresses can be connected to the same I2C port.<br>
When the 8 channel expansion board device is also in normal use, the default address of this expander is 0x70, the address can be changed, and can be set within 0x70~0x77 according to your needs. In theory, 8 expanders can be cascaded in the address of 0x70~0x77, and each expander can connect 8 devices with the same address. This realizes the same I2C port and connects 64 devices with the same address and uses them normally.<br>
Expansion board TCA9548A compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion, low standby current, no glitch during power-up, support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting, TCA9548A I2C IIC multiplexer breakout board depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected.<br>
When a timeout or other improper operation occurs, the system master can reset the TCA9548A by asserting the /RESET input low. Similarly, a power-on reset deselects all channels and initializes the I2C/SMBus state machine. Reset and initialization can also be achieved by asserting /RESET and there is no need to power down the part. The switch has a turn-on gate so that the VCC pin can be used to limit the maximum high voltage through the TCA9548A.<br>
CJMCU- 9548 TCA9548 limiting the maximum high voltage allows different bus voltages to be used on each channel pair so that 1.8V, 2.5V or 3.3V components can communicate with 5V components without any additional protection, for each channel, external pull-up res</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

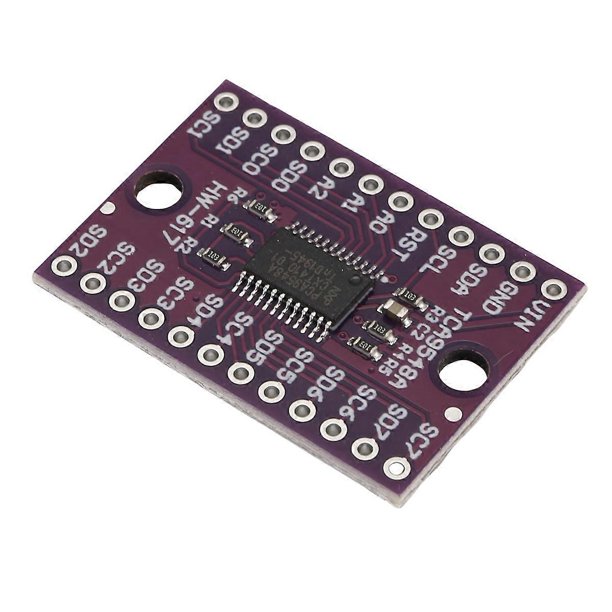

10Pcs TCA9548A I2C IIC Multiplexer Breakout Board Module 8 Channel Expansion Development Board for A

The TCA9548A adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.There are 8 I2C interfaces on one expander, and there are eight bidirectional fer switches that can be controlled by I2C bus. This means that after 1 expander is ferred, 8 identical addresses can be connected to the same I2C port.<br>
When the 8 channel expansion board device is also in normal use, the default address of this expander is 0x70, the address can be changed, and can be set within 0x70~0x77 according to your needs. In theory, 8 expanders can be cascaded in the address of 0x70~0x77, and each expander can connect 8 devices with the same address. This realizes the same I2C port and connects 64 devices with the same address and uses them normally.<br>
Expansion board TCA9548A compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion, low standby current, no glitch during power-up, support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting, TCA9548A I2C IIC multiplexer breakout board depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected.<br>
When a timeout or other improper operation occurs, the system master can reset the TCA9548A by asserting the /RESET input low. Similarly, a power-on reset deselects all channels and initializes the I2C/SMBus state machine. Reset and initialization can also be achieved by asserting /RESET and there is no need to power down the part. The switch has a turn-on gate so that the VCC pin can be used to limit the maximum high voltage through the TCA9548A.<br>
CJMCU- 9548 TCA9548 limiting the maximum high voltage allows different bus voltages to be used on each channel pair so that 1.8V, 2.5V or 3.3V components can communicate with 5V components without any additional protection, for each channel, external pull-up res
