<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal
Connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package included:
1 x Encoder Incremental Rotary Encoder</li></ul>

Marca

Peso del Producto Ensamblado

Condición

Dimensiones del producto ensamblado

title_shipToHome_date_free_delivery

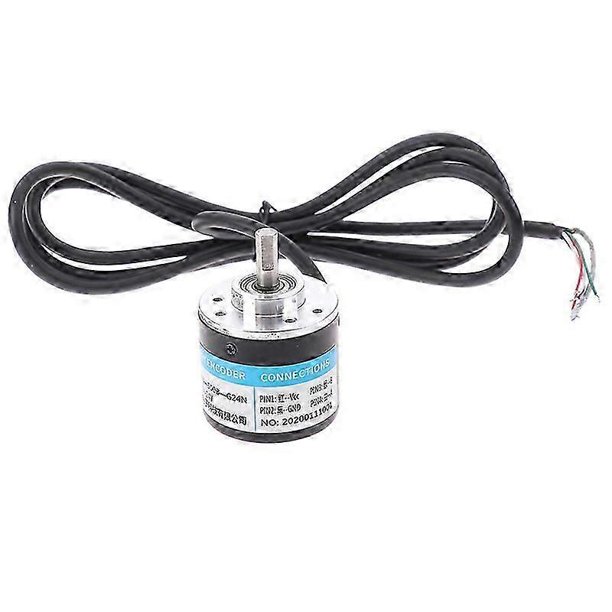

100/200/360/400/500/600P/R Photoelectric Incremental Rotary Encoder 5V-24V

Devolución hasta 30 días después de recibido.

Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal
Connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package included:
1 x Encoder Incremental Rotary Encoder
