<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>3.5-30V Step-down HB LED Driver Module
Working voltage: DC 3.5-30V(Perfect for 3.7V 5V 6V 9V 12V 18V 24V LED Driver)
Output Current: 0-500MA;By changing the RCS resistance, the maximum drive current can be changed
Maximum output power: 20W
Current regulation: Through PWM control
Single pin ON/OFF and brightness control using PWM
Simple low parts count
Wide input voltage range: 3.5V to 30V
Up to 500MA output current
PWM dimming
3% output current accuracy.
Up to 1MHz switching frequency
Typical 3% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 94%)
Adjustable Constant LED Current
High-Side Current Sense
Hysteretic Control: No Compensation
Soft Over Temperature Protection
Typical Application:
Low voltage halogen replacement LEDs
Automotive lighting
LED back-up lighting
Illuminated signs
Car LED lights
Stage lights
The printing/appearance from batch to batch, but it not affect the use; the actual product may have color difference due to different light or display.
Colour:White
Material:PCB
Package Contents:
1 x Step-down HB LED Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

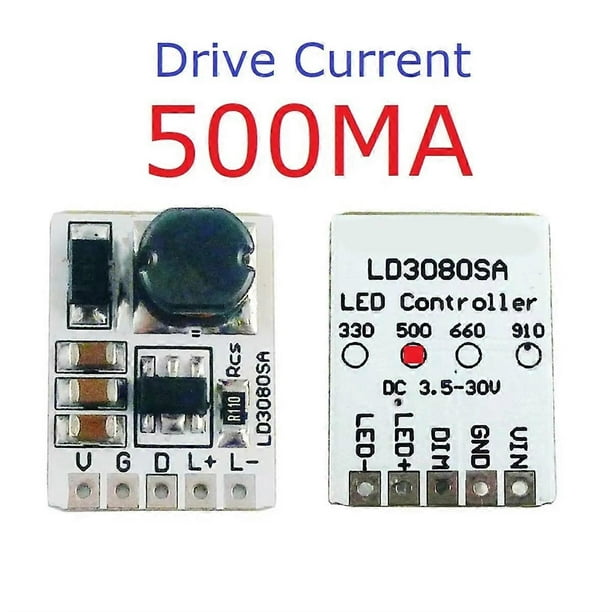

LD3080SA 20W DC 3.5-30V Step-Down HB LED Driver Module DC-DC Buck Constant Current Module for Flashlight Headlight 500MA

3.5-30V Step-down HB LED Driver Module
Working voltage: DC 3.5-30V(Perfect for 3.7V 5V 6V 9V 12V 18V 24V LED Driver)
Output Current: 0-500MA;By changing the RCS resistance, the maximum drive current can be changed
Maximum output power: 20W
Current regulation: Through PWM control
Single pin ON/OFF and brightness control using PWM
Simple low parts count
Wide input voltage range: 3.5V to 30V
Up to 500MA output current
PWM dimming
3% output current accuracy.
Up to 1MHz switching frequency
Typical 3% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 94%)
Adjustable Constant LED Current
High-Side Current Sense
Hysteretic Control: No Compensation
Soft Over Temperature Protection
Typical Application:
Low voltage halogen replacement LEDs
Automotive lighting
LED back-up lighting
Illuminated signs
Car LED lights
Stage lights
The printing/appearance from batch to batch, but it not affect the use; the actual product may have color difference due to different light or display.
Colour:White
Material:PCB
Package Contents:
1 x Step-down HB LED Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
