<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Descriptions:

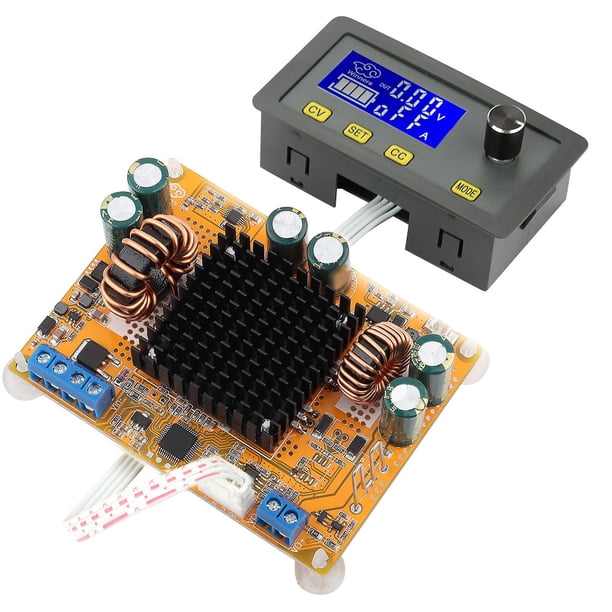

This is a DC-DC automatic Step-up Step-down converter power supply that converts 6V-32V to 0-30V.High
accuracy
LCD display design, make it convenient to read voltage and current.and high conversion rate, can up to 95%.
Features:
This is a DC-DC automatic Step-up Step-down converter power supply that converts 6V-32V to 0-30V.
High accuracy LCD display design, make it convenient to read voltage and current.
Large 160W maximum power,meet you need, but we suggest work within 120W, reduce power when the voltage difference is large.
High conversion rate, can up to 95%.
Working temperature: -10~+75 degrees,Please pay attention to power tube temperature, and enhance heat dissipation(there is a reserved fan installation position and terminal)
Specifications:
Input Voltage: DC 6V-32V
Output Voltage: DC 0-32V (continuously adjustable)
(The boost depends on the input voltage, and the output is up to 30V)
O
utput Current:Maximum.5A(Adjustable)
Efficiency:Maximum.95%
Power:Maximum.160W( recommended to be used in 120W)
Operating Temperature: -10~75℃
Resolution: 0.01V(Voltage), 0.01A(Current)
Short Circuit Protection: Yes
Reverse Input Protection: Yes
Output Backflow Protection: No, add a diode if use for charging
Size: as the picture
Weight:144g
Connection mode: terminal VI+: input +, VO+:output +
Settings:
1.Output
voltage setting: short press "CV" button, enter the voltage setting
mode, turn potentiometer to adjust the current voltage value, press the
potentiometer can switch to the voltage value of decimal point before or after the
decimal point to adjust, after the adjustment, short press "CV"again to save and exit
2.Output current setting: short press "CC" button, enter the current
setting mode, turn potentiometer to adjust the current value, press the
potentiometer can switch to the decimal point before or after the
decimal point of current value to adjust,after the adjustment,short
press "CC"again to save and exit.
3.Display MODE setting: short press "MODE", switch display mode, IN: display input voltage, OUT : display output voltage
4.Switch output setting: directly short press the potentiometer key, open or
close the output terminal voltage, and the current position will display
OFF when closing.
Package Included:
1 x Automatic Step-up Step-down Module
Note:
Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
.</li></ul>
