<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:

The protection board is for 13 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.

Charging connector and discharging connector are separated, continuous discharging current is 20A.

It has balance function which would ensure each battery cell being fully charged at same time.

Support overcharge protection, over-discharge protection and short circuit protection.



Stable various charging and discharging protective functions are great for 13S battery protection.





Specifications:

Size: 66*49*10mm/2.59*1.93*0.39"

Single Cell Overcharge Protection Voltage: 4.25V

Single Cell Overcharge Restoring Voltage: 4.1V

Single Cell Over-discharge Protection Voltage: 2.8V

Single Cell Over-discharge Restoring Voltage: 3.0V

Protection Consumption Current: 30A

Short Circuit Protection Current: 60A

Short Circuit Protection Time: 500mS

Temperature Protection: 55/65//75

Discharge Current: 20A

Single Cell Equilibrium Voltage: 4.18V

Single Cell Equilibrium Current: 30mA



Package Includes:

1 x Protection Board

1 x Cable</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

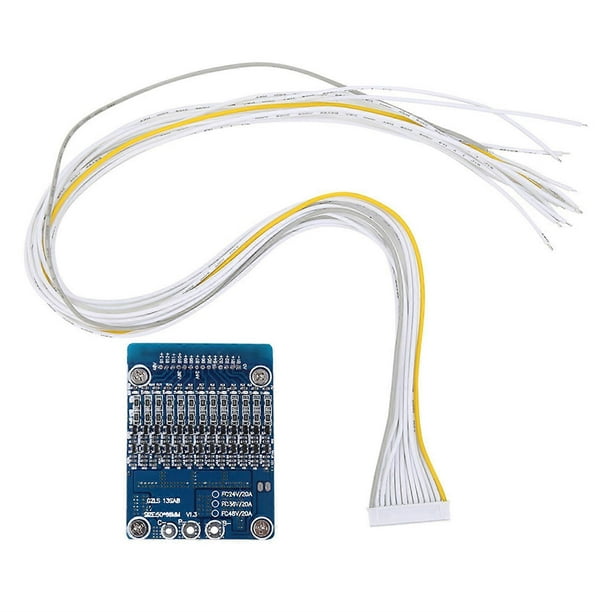

13S 48V 20A Li ion Cell 18650 Battery Protection BMS PCB Board With Balance Function

Features:

The protection board is for 13 series cell Li-ion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.

Charging connector and discharging connector are separated, continuous discharging current is 20A.

It has balance function which would ensure each battery cell being fully charged at same time.

Support overcharge protection, over-discharge protection and short circuit protection.



Stable various charging and discharging protective functions are great for 13S battery protection.





Specifications:

Size: 66*49*10mm/2.59*1.93*0.39"

Single Cell Overcharge Protection Voltage: 4.25V

Single Cell Overcharge Restoring Voltage: 4.1V

Single Cell Over-discharge Protection Voltage: 2.8V

Single Cell Over-discharge Restoring Voltage: 3.0V

Protection Consumption Current: 30A

Short Circuit Protection Current: 60A

Short Circuit Protection Time: 500mS

Temperature Protection: 55/65//75

Discharge Current: 20A

Single Cell Equilibrium Voltage: 4.18V

Single Cell Equilibrium Current: 30mA



Package Includes:

1 x Protection Board

1 x Cable
