<div>Pantalla LCD multifunción, bajo consumo de energía, visualización de fecha, hora, velocidad del motor, kilometraje subtotal de viaje, kilometraje total ODO, modo de prueba de aceleración de 0-100 KM/H.§§</div>

<ul><li>Producto de importación</li><li>Specification:Item Type: Dash Racing Display</li><li>Material: PlasticSize: Approx. 186 x 102 x 22mm/7.32 x 4.02 x 0.87in Length x Width x Thickness</li><li>Speed Belt Display: 9000RPM Maximum</li><li>Display Type: Digital</li><li>Language: Chinese/English</li><li>Speed Belt: 9000 MAX</li><li>Working Voltage: 10V-16V</li><li>Applicable Models: All 12V Vehicles</li><li>Parameters:</li><li>Control Unit Current Consumption: &lt;200MA When IGN ON &lt;1MA When IGN OFF &lt;5MA</li><li>Operating Temperature Range: -20-+60 degrees Celsius  Humidity Below 80%</li><li>Storage Temperature Range: -30-+80 degrees Celsius  Humidity Below 80%</li><li>Corresponding Speed Pulse: 2, 4, 6, 8 Pulse</li><li>Pulse : 1,274-16,562 Pulses/KM Same as Pulse 2-26</li><li>Corresponding Cylinder Number: 1, 2, 3, 4, 5, 6, 8 Cycle</li><li>Parameter Display Range:</li><li>Speed SP: 0-255KM/H</li><li>Engine Speed: 0-9000RPM</li><li>Oil Pressure OIL P.: 0-150PSI or 0-10BAR</li><li>Turbocharger BOOST P.: -15-45PSI or -1-3BAR</li><li>Air Fuel Ratio AFR: 20-10:1</li><li>Oil Temperature OIL T.: 0-150 degrees Celsius  or 0-300℉</li><li>Water Temperature WATER T.: 0-150 degrees Celsius  or 0-300℉</li><li>Exhaust Temperature EXT T.: 0-1300 or 0-2400℉</li><li>Voltage: 10-16VClock: 24H clock</li><li>Frequently Asked Questions:</li><li>What kind of display screen does this use? Can the backlight color of the display be changed?</li><li>Answer: DO908 uses a low-power LCD display screen. The backlight is green and cannot be replaced.</li><li>Can the speed unit be changed? KPH, MPH?</li><li>Answer: Yes. DO908 multi-function racing car modification table can  between KPH units per kilometer per hour and MPH units per mile per hour.</li><li>1. Can the pressure unit be changed?</li><li>Answer: The DO908 multi-function racing car modification table can be used to  between BAR/PSI units.</li><li>2. Can the temperature unit be changed? Celsius, Fahrenheit?</li><li>Answer: Yes. The DO908 multi-function racing car modification table can be switched between Fahrenheit ℉ and Celsius  degrees Celsius  units.</li><li>3. Can DO908 be used on motorcycles?</li><li>Answer: DO908 is suitable for all 12v vehicles and has life waterproof function, which can be installed and used on motorcycles.</li><li>4. Is this model equipped with all sensors? What is the sensor thread size? Can the sensor of the original car be connected?</li><li>Answer: We are equipped with oil temperature sensor, water temperature sensor, oil pressure sensor, turbocharger sensor and exhaust sensor sensor with uniform thread size ZG1/8. Therefore, the original car sensor cannot be connected, and the original car sensor needs to be replaced with our sensor. Otherwise, the thread does not match and cannot be installed.</li><li>5. What should I do if my vehicle does not have an ECU?</li><li>Answer: Usually the signal needs to be connected to the sensor, and the speed and vehicle speed need to be connected to the ECU.</li><li>If the vehicle does not have an ECU, the speed can be connected to the negative electrode of the ignition coil. At this time, a speed adapter sold separately needs to be installed, otherwise it is easy to be interfered by the speed. Some customers want to connect the speed signal to the crankshaft sensor, we do not recommend installation. Because the pulse signal of the crankshaft sensor is much higher than the ECU output, the speed signal will be inaccurate.</li><li>The vehicle speed is connected to a Hall vehicle speed sensor, and then the vehicle speed is calibrated according to the<br>Producto de importación No hay factura disponible;</li></ul>

Marca

Peso del Producto Ensamblado

FabricanteNombre del Fabricante

Condición

Dimensiones del producto ensamblado

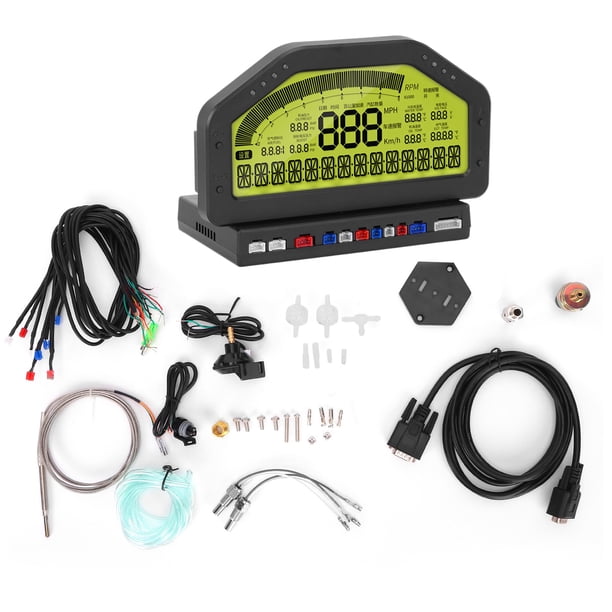

Medidor LCD Para Tablero De Instrumentos, Pantalla LCD Para Tablero De Carreras, Plástico Preciso Para Automóvil

Devolución hasta 30 días después de recibido.

Producto de importación$$Specification:Item Type: Dash Racing Display$$Material: PlasticSize: Approx. 186 x 102 x 22mm/7.32 x 4.02 x 0.87in Length x Width x Thickness$$Speed Belt Display: 9000RPM Maximum$$Display Type: Digital$$Language: Chinese/English$$Speed Belt: 9000 MAX$$Working Voltage: 10V-16V$$Applicable Models: All 12V Vehicles$$Parameters:$$Control Unit Current Consumption: &lt;200MA When IGN ON &lt;1MA When IGN OFF &lt;5MA$$Operating Temperature Range: -20-+60 degrees Celsius  Humidity Below 80%$$Storage Temperature Range: -30-+80 degrees Celsius  Humidity Below 80%$$Corresponding Speed Pulse: 2, 4, 6, 8 Pulse$$Pulse : 1,274-16,562 Pulses/KM Same as Pulse 2-26$$Corresponding Cylinder Number: 1, 2, 3, 4, 5, 6, 8 Cycle$$Parameter Display Range:$$Speed SP: 0-255KM/H$$Engine Speed: 0-9000RPM$$Oil Pressure OIL P.: 0-150PSI or 0-10BAR$$Turbocharger BOOST P.: -15-45PSI or -1-3BAR$$Air Fuel Ratio AFR: 20-10:1$$Oil Temperature OIL T.: 0-150 degrees Celsius  or 0-300℉$$Water Temperature WATER T.: 0-150 degrees Celsius  or 0-300℉$$Exhaust Temperature EXT T.: 0-1300 or 0-2400℉$$Voltage: 10-16VClock: 24H clock$$Frequently Asked Questions:$$What kind of display screen does this use? Can the backlight color of the display be changed?$$Answer: DO908 uses a low-power LCD display screen. The backlight is green and cannot be replaced.$$Can the speed unit be changed? KPH, MPH?$$Answer: Yes. DO908 multi-function racing car modification table can  between KPH units per kilometer per hour and MPH units per mile per hour.$$1. Can the pressure unit be changed?$$Answer: The DO908 multi-function racing car modification table can be used to  between BAR/PSI units.$$2. Can the temperature unit be changed? Celsius, Fahrenheit?$$Answer: Yes. The DO908 multi-function racing car modification table can be switched between Fahrenheit ℉ and Celsius  degrees Celsius  units.$$3. Can DO908 be used on motorcycles?$$Answer: DO908 is suitable for all 12v vehicles and has life waterproof function, which can be installed and used on motorcycles.$$4. Is this model equipped with all sensors? What is the sensor thread size? Can the sensor of the original car be connected?$$Answer: We are equipped with oil temperature sensor, water temperature sensor, oil pressure sensor, turbocharger sensor and exhaust sensor sensor with uniform thread size ZG1/8. Therefore, the original car sensor cannot be connected, and the original car sensor needs to be replaced with our sensor. Otherwise, the thread does not match and cannot be installed.$$5. What should I do if my vehicle does not have an ECU?$$Answer: Usually the signal needs to be connected to the sensor, and the speed and vehicle speed need to be connected to the ECU.$$If the vehicle does not have an ECU, the speed can be connected to the negative electrode of the ignition coil. At this time, a speed adapter sold separately needs to be installed, otherwise it is easy to be interfered by the speed. Some customers want to connect the speed signal to the crankshaft sensor, we do not recommend installation. Because the pulse signal of the crankshaft sensor is much higher than the ECU output, the speed signal will be inaccurate.$$The vehicle speed is connected to a Hall vehicle speed sensor, and then the vehicle speed is calibrated according to the<br>Producto de importación No hay factura disponible;
