<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>A 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.
Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.
Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.
The enhanced version integrates the BEC module (5V2A) on the basis of the standard version's unchanged size, adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.
Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth. Colour:As Shown
Material:PCB
Name: AM32 40A ESC
Firmware: AM32
Master: AT32
Working voltage: 2-4S
Output current: 30A continuous, 40A maximum
Supported signals: PWM/DSHOT/sine, etc.
BEC module: Yes, 5V 2A
Cable length: 10cm
Size: 30x12x7mm
Weight: 11g
Attention! It is strongly recommended to install a large capacity electrolytic capacitor(NOT include, prepare by yourself) outside the ESC to improve its working condition! Package Contents:
1 * AM32 ESC Accessories Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

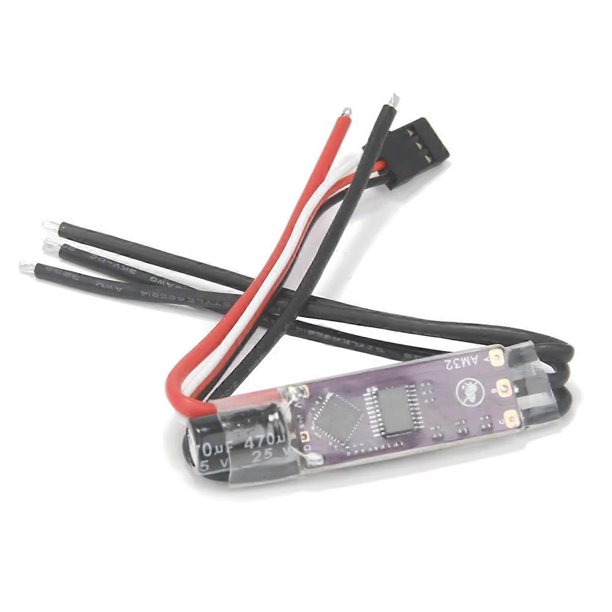

AM32 40A 32-bit Mini ESC Programming BEC PWM Converter

A 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.
Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.
Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.
The enhanced version integrates the BEC module (5V2A) on the basis of the standard version's unchanged size, adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.
Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth. Colour:As Shown
Material:PCB
Name: AM32 40A ESC
Firmware: AM32
Master: AT32
Working voltage: 2-4S
Output current: 30A continuous, 40A maximum
Supported signals: PWM/DSHOT/sine, etc.
BEC module: Yes, 5V 2A
Cable length: 10cm
Size: 30x12x7mm
Weight: 11g
Attention! It is strongly recommended to install a large capacity electrolytic capacitor(NOT include, prepare by yourself) outside the ESC to improve its working condition! Package Contents:
1 * AM32 ESC Accessories Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
