<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

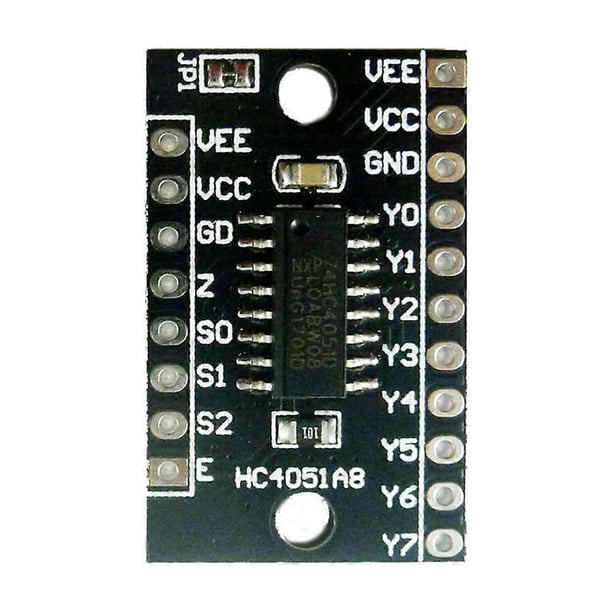

<ul><li>The 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications.
The switch features three digital select inputs (S0, S1 and S2), eight inputs/outputs (), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Benefits:
Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at VCC - VEE = 6.0 V
60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical 'break before make' built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Specified from -40 °C to +85 °C and -40 °C to +125 °C
Applications:
for Breadboard
for
for MCU ARM AVR ADC
for
for PLC RS485 Modbus
for Analog acquisition
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Color: Black
Material: PCB
Package Contents:
1*8ch Analog Multiplexer
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

8-channel Analog Multiplexer\n8-channel Analog Demultiplexer

The 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications.
The switch features three digital select inputs (S0, S1 and S2), eight inputs/outputs (), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Benefits:
Wide analog input voltage range from -5 V to +5 V
Complies with JEDEC standard no. 7A
Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at VCC - VEE = 6.0 V
60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical 'break before make' built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Specified from -40 °C to +85 °C and -40 °C to +125 °C
Applications:
for Breadboard
for
for MCU ARM AVR ADC
for
for PLC RS485 Modbus
for Analog acquisition
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Color: Black
Material: PCB
Package Contents:
1*8ch Analog Multiplexer
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
