<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Feature:
1. RF Powered: The bias tee uses RF power from the active antenna and supports DC bias, spacers and coaxial feeds.
2. Easy to Install: The insulator of this bias tee is made of excellent RF connector material and the interface type is fitted, making it very easy to install.
3. High Frequency: The bias tee features a high frequency RF broadband amplifier module that allows for amplification of frequencies ranging from 0.1‑200MHz. This feature ensures that high frequency signals are amplified and transmitted effectively, improving the overall performance of the system.
4. Extend Life: The bias tee includes a DC blocker that prevents DC current from entering the RF signal. This feature ensures that only the required signals are transmitted, enhancing the system's reliability, and prolonging the life of the components.
5. RF Terminal Input: The output of this bias tee is isolated and the communication data is injected via the RF terminal, with a T shaped structure that allows the separation of the DC bias signal and the RF signal, thus enabling efficient signal transmission and component protection.
Specification:
Item Type: Bias Tee
Material: Aluminium alloy
Operating Parameters:
1. Frequency Range: 100KHz-200MHz
2. Insertion Loss: 0.05dB at1MHz 0.08dB at100MHz (refer to S11 and S21 parameters) for VSWR and transmission parameters
3. Maximum Voltage: 50V
4. Maximum Current: 1000mA
5. RF Connector: N head (default shipping capacitor end is male, feed end is female)
6. System Impedance: 50Ω wiring method.
Package List:
1 x
Bias Tee</li></ul>

Marca

Nombre del Fabricante

Dimensiones del producto ensamblado

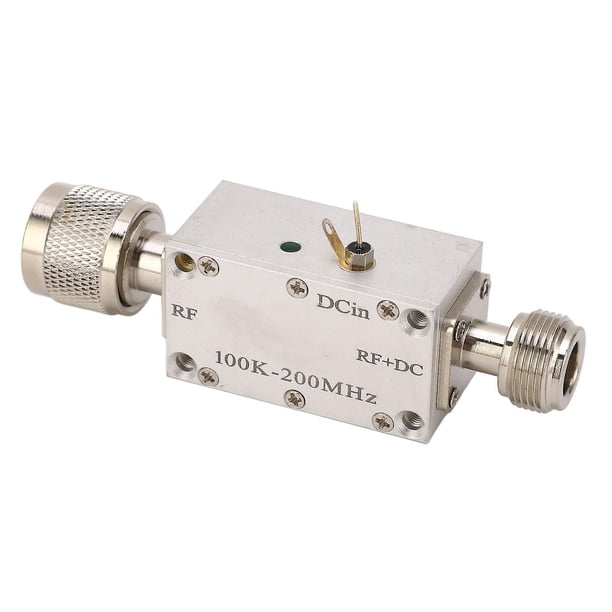

High Frequency Broadband RF Amplifier Module, Bias Tee, Coaxial Feed for Optical Modulation Drive 0.1-200 MHz, 1 A

Feature:
1. RF Powered: The bias tee uses RF power from the active antenna and supports DC bias, spacers and coaxial feeds.
2. Easy to Install: The insulator of this bias tee is made of excellent RF connector material and the interface type is fitted, making it very easy to install.
3. High Frequency: The bias tee features a high frequency RF broadband amplifier module that allows for amplification of frequencies ranging from 0.1‑200MHz. This feature ensures that high frequency signals are amplified and transmitted effectively, improving the overall performance of the system.
4. Extend Life: The bias tee includes a DC blocker that prevents DC current from entering the RF signal. This feature ensures that only the required signals are transmitted, enhancing the system's reliability, and prolonging the life of the components.
5. RF Terminal Input: The output of this bias tee is isolated and the communication data is injected via the RF terminal, with a T shaped structure that allows the separation of the DC bias signal and the RF signal, thus enabling efficient signal transmission and component protection.
Specification:
Item Type: Bias Tee
Material: Aluminium alloy
Operating Parameters:
1. Frequency Range: 100KHz-200MHz
2. Insertion Loss: 0.05dB at1MHz 0.08dB at100MHz (refer to S11 and S21 parameters) for VSWR and transmission parameters
3. Maximum Voltage: 50V
4. Maximum Current: 1000mA
5. RF Connector: N head (default shipping capacitor end is male, feed end is female)
6. System Impedance: 50Ω wiring method.
Package List:
1 x
Bias Tee
