<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

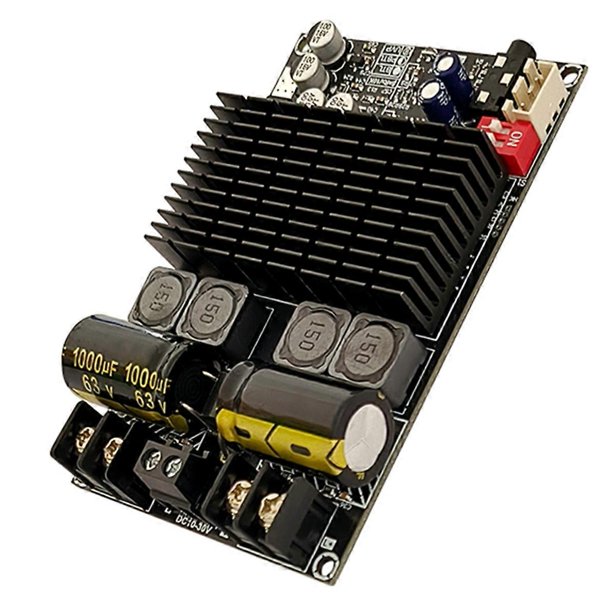

<ul><li>Product name: 100W+100W dual channel/200W single channel pure rear stage amplifier board
Power amplifier chip: TPA3221
Product model: -2001
Adapted power supply: The working voltage range is 10-30VDC, with a limit of 31V. It is recommended to use a DC
power supply with a voltage of 24-30V and a current of 10A or more. The higher the voltage, the greater the output
power. Never connect to AC power, otherwise it burn out!
Adapted speaker: 3-8 ohms, 20-100W in BTL dual channel mode; 2-8 ohms, 50-200W in PBTL mono mode
Heat dissipation method: Multi tooth heat sink
Gain selection: 2nd DIP switch 2nd gear selection, 28dB, 38dB
Bridging method: Turn off the power first, turn the No.1 dial switch to the ON position, and the output end R+L+is
short circuited in parallel for output, while R - L - is short circuited in parallel for output.
Maximum power: In BTL mode,2*70W@24V 4Ω ,2*100W@30V 4Ω ;In PBTL mode, 150W@30V 3Ω, 200W@30V
2Ω,110W@30V 4Ω
Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection.Input anti reverse
protection
Product size: 100x65x18mm
Colour:Black
Material:plastic
Package Contents:
1 x amplifier board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

brand

title_shipToHome_date_free_delivery

Dual channel Pure Rear Stage Digital Amplifier Board

Devolución hasta 30 días después de recibido.

Product name: 100W+100W dual channel/200W single channel pure rear stage amplifier board
Power amplifier chip: TPA3221
Product model: -2001
Adapted power supply: The working voltage range is 10-30VDC, with a limit of 31V. It is recommended to use a DC
power supply with a voltage of 24-30V and a current of 10A or more. The higher the voltage, the greater the output
power. Never connect to AC power, otherwise it burn out!
Adapted speaker: 3-8 ohms, 20-100W in BTL dual channel mode; 2-8 ohms, 50-200W in PBTL mono mode
Heat dissipation method: Multi tooth heat sink
Gain selection: 2nd DIP switch 2nd gear selection, 28dB, 38dB
Bridging method: Turn off the power first, turn the No.1 dial switch to the ON position, and the output end R+L+is
short circuited in parallel for output, while R - L - is short circuited in parallel for output.
Maximum power: In BTL mode,2*70W@24V 4Ω ,2*100W@30V 4Ω ;In PBTL mode, 150W@30V 3Ω, 200W@30V
2Ω,110W@30V 4Ω
Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection.Input anti reverse
protection
Product size: 100x65x18mm
Colour:Black
Material:plastic
Package Contents:
1 x amplifier board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
