Name: Digital Power Amplifier Board, Long Term Use Sound Quality Amplifier Board Excellent Design For Computer For Player ANGGREK Amplifier Components
Brand: Anggrek
SKU: 00648943469340
Availability: OutOfStock

Walmart US Ecommerce Website

GENERAL MERCHANDISE

PHARMACY

GROCERIES

VUDU

SPARK


ADVERTISING

SAVINGS CATCHER

GIFTCARDS

INHOME

AFFILIATE

ONEAPP

LOTUS

HELP

SMART_REORDER

GROCERY

CONV_COMMERCE

GlobalAlertBar - aviso privacidad - 060625

title_shipToHome_date_delivery

Sistema De Audio Profesional Amplificado Audiobahn Ultra15 15 pulgadas

title_shipToHome_not_available

Juego de 3 Sartenes de Aluminio Vital 20, 24 y 26 cm T-Fal Vital T-fal Vital

Extractor de Jugos Turmix Mod. TU04 Estándar Beige

Bafle de 15 Pulgadas Kaiser MSA-7515

Pantalla 32 pulgadas LCD Roku Tv

Combo Lavadora Secadora Whirlpool C8MWTW1934-1930 19 kg

Bóxer Ajustado Fruit Of The Loom para Hombre,  Multicolor 5 Piezas Talla M

Sillas Plegables Blancas Paquete 6 LOOMBER

BAFLE AMPLIFICADO RECARGABLE 15" MSA-7515 Kaiser MSA-7515MX

Juego 3 Sartenes T-fal 20 24 26 Aluminio Antiadherente Stone

Extractor de Jugos Turmix Mod. TU03 CYCLONE Beige

Bafle Daewoo Recargable Bluetooth Negro DW2008

Bóxer Fruit of the Loom para Hombre, Ajustado, Multicolor, Super Value 5 Piezas, Talla G

Licuadora Ninja Professional 3 Velocidades 2.1 Litros 1000 Watts Negra

Mesa Plegable Plástico Tipo Portafolio Jardín Portátil 1.80m Color Blanco

Sartén Oster Eléctrico Interior Antiadherente

Plancha Hamilton Beach Durathon Panel digital y vapor extremo Gris

Centro de Lavado Whirlpool 20 kg Blanca

Set de 3 Sartenes de Hierro Fundido Antiadherente Casa Litus 83160

Extractor de Jugos Oster JusSimple, Filtro de Fácil Limpieza, Acero y Negro

Bocina Bafle Activo De 800w Rms Xm15b Melo

Plancha Black & Decker de Vapor Suela de Acero Inoxidable con Cable Retráctil Verde

Combo Oster 5 Elementos con Licuadora, Hervidor, Batidora de Mano, Procesador de Alimentos, y Cuchilla Picahielo

Juego de Sartenes Ekco Aluminio Antiadherente Rojo 3 piezas

Complementos para tu compra

A Customer Also Viewed- P13n July 21, 2023

MTZ Team | Brand Box - Item Page

MTZ Team | Marquee 1  Item Page

MTZ Team | Marquee 2  Item Page

MTZ Team | Skyline Item Page

Productos Recomendados

MTZ Team | Sponsored Carousels - Product Page

New Item Page - Reviews Placeholder Module, Wednesday, August 23, 2023, 12:41:20:28 pm

Product Description Placeholder Module, Monday, February 13, 2023, 11:53:20:01 am

Product Specifications Placeholder Module, Monday, February 13, 2023, 11:55:48:74 am

Product Warranty Placeholder Module, Monday, February 13, 2023, 11:57:01:93 am

Refurbished Info Placeholder Module, Monday, February 13, 2023, 11:56:19:46 am

SellersSecondaryBuyBox Module, Monday, February 13, 2023, 11:52:40:61 am

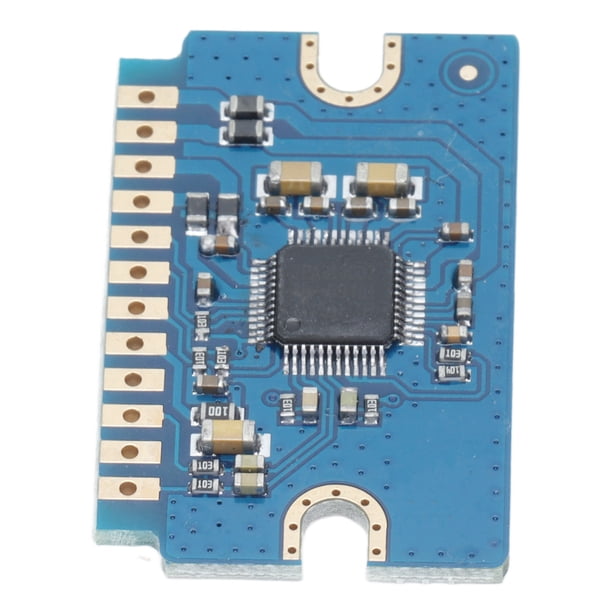

<div>Producto de importación$$Specification:Item Type: Digital Power Amplifier Board$$Material: Plastic$$Power Supply Voltage: DC12V-24V$$Chip Voltage Range: DC8V-26V$$Rated Power: 20W+20W$$Output Impedance: 4-8 Ohm $$Peak Power: 35W+35W$$Maximum Dynamic Current: 4A$$Static Current: &lt;40mA$$Off Current: &lt; 1uA$$Gain: 35db$$Output Impedance: About 20k Ohm $$PCB Size: Length Approx. 38mm / 1.5in, Width Approx. 25mm / 1in,Thickness Approx. 2.8mm / 0.1in$$Pin: Width: 12 x Approx. 2.54mm / 0.1in, Length: Approx. 4mm / 0.16in$$Package List:1 x Digital Power Amplifier Board$$Note:<div>In simple applications, the three pins marked in red do not need wiring. The fault indication is the high level indication in case of output short circuit, the mute high level is effective, and the turn off low level is effective.</div><br>Producto de importación No hay factura disponible;</div>

<ul><li><ul><li>Fully Functional: The power amplifier module has the protection functions of undervoltage, overcurrent and output short circuit</li><li>Sound Quality:  sound quality, passing 100 times of short circuit test at full power output</li><li>Excellent Design: In the design, ports such as shutdown control and mute control are reserved, and output fault report output is provided, which is more convenient for application in secondary development</li></ul></li></ul>

Modelo / Estilo / Tipo

Material

País de Origen

Ancho del Producto Ensamblado

Peso del Producto Ensamblado

Color

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

Digital Power Amplifier Board, Long Term Use  Sound Quality Amplifier Board Excellent Design  For Computer For Player ANGGREK Amplifier Components

<ul><li>Fully Functional: The power amplifier module has the protection functions of undervoltage, overcurrent and output short circuit</li><li>Sound Quality:  sound quality, passing 100 times of short circuit test at full power output</li><li>Excellent Design: In the design, ports such as shutdown control and mute control are reserved, and output fault report output is provided, which is more convenient for application in secondary development</li></ul>
