<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Features:

1.HD video balun converts video signals into balanced signals for normal Cat-5 unshielded twisted pair transmission.
2.With perfect transmission effect, it can be applied to video surveillance, video conferencing, etc.
3.Can transmit four channels of video image simultaneous on an 8-core Cat-5 twisted pair wire.
4.It can simplify the wiring project and save wire use quantity.
5.Compatible with all HD-CVI,HD-TVI,HD-AHD. Up to 250m for 1080P AHD Cameras.
Specification:
Features:



HD video balun converts video signals into balanced signals for normal Cat-5 unshielded twisted pair transmission.

With perfect transmission effect, it can be applied to video surveillance, video conferencing, etc.

Can transmit four channels of video image simultaneous on an 8-core Cat-5 twisted pair wire.

It can simplify the wiring project and save wire use quantity.

Compatible with all HD-CVI,HD-TVI,HD-AHD. Up to 250m for 1080P AHD Cameras.

Up to 450m for 720P CVI Cameras. Up to 250m for 1080P CVI Cameras

Up to 250m for 720P/1080P TVI Cameras. Up to 320m for 720P AHD Cameras.

NTSC,PAL,and SECAM video formats. No power required.

60dB crosstalk and noise immunity. Built-in transient suppression protection



Specification:

Condition: New

Item Type: Video Balun

Color: Shown as Picture

Material: Metal

Compatible: HD-CVI,HD-TVI,HD-AHD

Video Formats: NTSC,PAL, SECAM

Frequency Response: DC to 60Mhz

Attenuation: 0.5dB Type

CMRR: 60dB

Surge Protection: 4KV

ESD: 8KV

Impedance: BNC: 75ohms, RJ45: 100ohms

Working Temperature: -10 -70

Storage Temperature: -30 -70

Humidity: 0-95%





Type of wire required:

Unshielded Cat-5 or above twisted pair cable (Please use standard Cat-5 or above twisted pair cable. The quality of the wire will directly affect the transmission image effect and transmission distance.)

Characteristic impedance: 10020

DC loop resistance: 18/ 100m

Differential capacitance: 62pf (maximum)





Connection Method:

Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC.



Package List:

1 x 8CH Passive Video Balun

1 x Manual







Note:

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.</li></ul>

Condición

Material

País de Origen

Ancho del Producto Ensamblado

Gama Color

Peso del Producto Ensamblado

Contenido del Empaque

Longitud del Producto Ensamblado

Altura del Producto Ensamblado

Marca

title_shipToHome_date_free_delivery

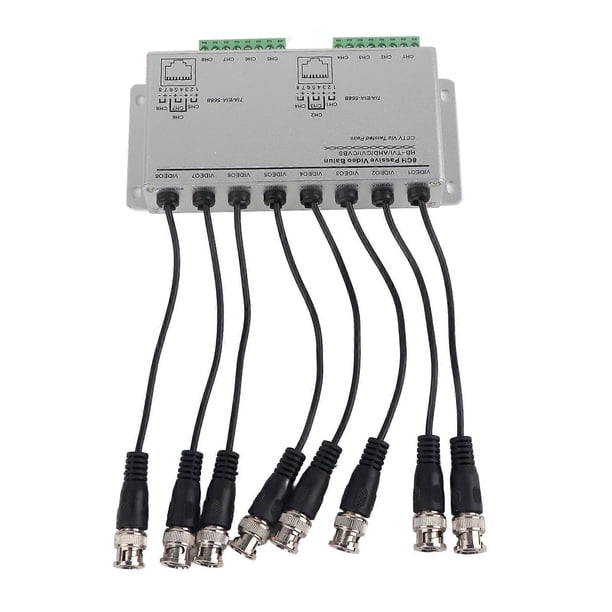

8CH HD BNC Male To UTP Cable Transceiver Adapter CCTV Passive Video Balun for Camera System

Devolución hasta 30 días después de recibido.

Features:

1.HD video balun converts video signals into balanced signals for normal Cat-5 unshielded twisted pair transmission.
2.With perfect transmission effect, it can be applied to video surveillance, video conferencing, etc.
3.Can transmit four channels of video image simultaneous on an 8-core Cat-5 twisted pair wire.
4.It can simplify the wiring project and save wire use quantity.
5.Compatible with all HD-CVI,HD-TVI,HD-AHD. Up to 250m for 1080P AHD Cameras.
Specification:
Features:



HD video balun converts video signals into balanced signals for normal Cat-5 unshielded twisted pair transmission.

With perfect transmission effect, it can be applied to video surveillance, video conferencing, etc.

Can transmit four channels of video image simultaneous on an 8-core Cat-5 twisted pair wire.

It can simplify the wiring project and save wire use quantity.

Compatible with all HD-CVI,HD-TVI,HD-AHD. Up to 250m for 1080P AHD Cameras.

Up to 450m for 720P CVI Cameras. Up to 250m for 1080P CVI Cameras

Up to 250m for 720P/1080P TVI Cameras. Up to 320m for 720P AHD Cameras.

NTSC,PAL,and SECAM video formats. No power required.

60dB crosstalk and noise immunity. Built-in transient suppression protection



Specification:

Condition: New

Item Type: Video Balun

Color: Shown as Picture

Material: Metal

Compatible: HD-CVI,HD-TVI,HD-AHD

Video Formats: NTSC,PAL, SECAM

Frequency Response: DC to 60Mhz

Attenuation: 0.5dB Type

CMRR: 60dB

Surge Protection: 4KV

ESD: 8KV

Impedance: BNC: 75ohms, RJ45: 100ohms

Working Temperature: -10 -70

Storage Temperature: -30 -70

Humidity: 0-95%





Type of wire required:

Unshielded Cat-5 or above twisted pair cable (Please use standard Cat-5 or above twisted pair cable. The quality of the wire will directly affect the transmission image effect and transmission distance.)

Characteristic impedance: 10020

DC loop resistance: 18/ 100m

Differential capacitance: 62pf (maximum)





Connection Method:

Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC.



Package List:

1 x 8CH Passive Video Balun

1 x Manual







Note:

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
