<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>Product : Active Poe to 24V Passive Poe converter
Fixed port : 1 x 10 / 100 / 1000m RJ45 ieee802.3af/at Poe input port; 1 10 / 100 / 1000m RJ45 passive 24V Poe output port
PoE Pin : POE IN: 37-57V in 1245+ 3678-; POE OUT: DC 24V 1A 45+ 78-
Power out : RJ45 output DC24V 1a, max. 24W; DC5521 output DC12V 0.5A, maximum 6W
Poe ex distance : 10 / 100 / 1000m mode, the maximum distance is 150m
DC power input : DC30-57V MAX 1A(No power adapter in default)
DC Input : 1: No power adapter in default; 2: 52V 0.6A power supply is required when it is used as a single port 24V POE injector
Power adapter : As Network Extender:DC12V MAX 0.5A; As PoE Network Extender:POE 37-57V MAX 0.6A
LED Indicator : Input terminal: power receiving success indicator (network port green and orange); Output terminal: output power indicator (network port green and orange)
Network POE Protocol : IEEE 802.3af/at; Passive 24V POE
Operating Temperature/Humidity : -10~+55C;5%~90% RH Non coagulation
Storage Temperature/Humidity : -40~+75C;5%~95% RH Non coagulation
Installation : Desktop, wall mounted
Colour:Black
Material:ABS
Package Contents:
1 x Converter(Due to different product batches, the appearance , which does not affect the use)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.</li></ul>

Marca

Peso del Producto Ensamblado

Dimensiones del producto ensamblado

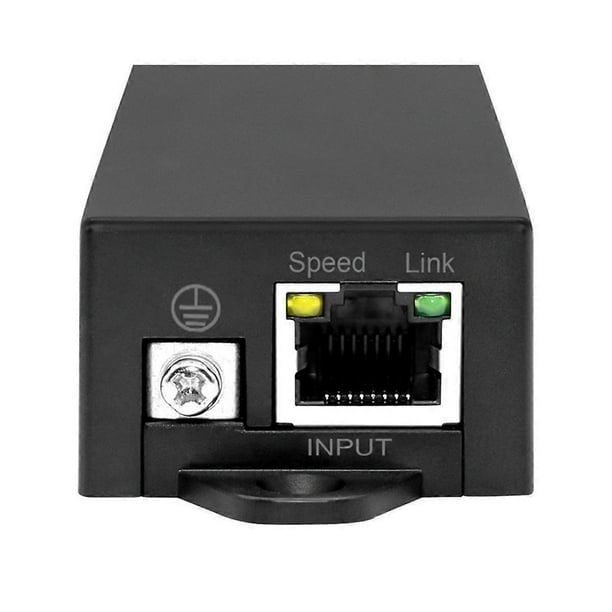

Single Port 802.3af /At 1000Mbps Active Poe to 24V Passive Poe Converter

Product : Active Poe to 24V Passive Poe converter
Fixed port : 1 x 10 / 100 / 1000m RJ45 ieee802.3af/at Poe input port; 1 10 / 100 / 1000m RJ45 passive 24V Poe output port
PoE Pin : POE IN: 37-57V in 1245+ 3678-; POE OUT: DC 24V 1A 45+ 78-
Power out : RJ45 output DC24V 1a, max. 24W; DC5521 output DC12V 0.5A, maximum 6W
Poe ex distance : 10 / 100 / 1000m mode, the maximum distance is 150m
DC power input : DC30-57V MAX 1A(No power adapter in default)
DC Input : 1: No power adapter in default; 2: 52V 0.6A power supply is required when it is used as a single port 24V POE injector
Power adapter : As Network Extender:DC12V MAX 0.5A; As PoE Network Extender:POE 37-57V MAX 0.6A
LED Indicator : Input terminal: power receiving success indicator (network port green and orange); Output terminal: output power indicator (network port green and orange)
Network POE Protocol : IEEE 802.3af/at; Passive 24V POE
Operating Temperature/Humidity : -10~+55C;5%~90% RH Non coagulation
Storage Temperature/Humidity : -40~+75C;5%~95% RH Non coagulation
Installation : Desktop, wall mounted
Colour:Black
Material:ABS
Package Contents:
1 x Converter(Due to different product batches, the appearance , which does not affect the use)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
