<div>Welcome to our store! We hope you have a wonderful shopping experience!</div>

<ul><li>24-pin standard ATX connector - Compatible with 20 / 20+4 / 24 pin headers.
Features a lock button for easy power ON/OFF control.
High quality with 24Amp (per position) screw terminals.
Indicator light clearly shows the module's status.
Simple and convenient to use.
Specifications:
Type: ATX Power Supply Module
Material: Circuit Board
Weight: Approx. 50g
Size: Approx. 52 * 87mm / 2 * 3.4in
On/Off Button:
6 * +5V / 16A connectors, 10 * GND / 16A connectors, 1 * -5V / 16A connector (-5V voltage is not available on every PC power supply, it often disappears; if you do not provide this output, this output will not provide anything), 1 * -12V / 16A connector, 4 * +12V / 16A connectors, 3 * +3.3V / 16A connectors
Package List:
1 * 24/20-Pin ATX Power Supply Module
Note:
1. For the 2-pin connector, in the case of the "power connector," you want to turn the button on/off remotely (then just connect the two external buttons). This allows you to access the power button even if the adapter is installed in the arcade panel.
2. Please allow for a slight error due to manual measurement. Thank you for your kind understanding.</li></ul>

Marca

Nombre del Fabricante

Dimensiones del producto ensamblado

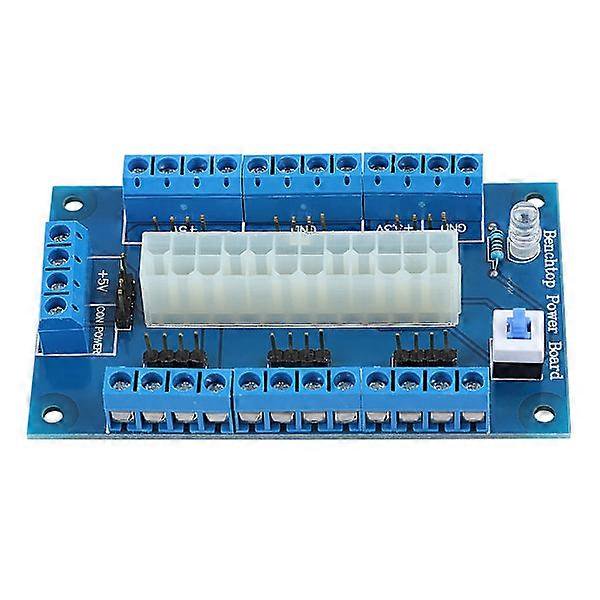

24/20-Pin ATX Power Supply Benchtop Breakout Board Module Adapter For Computer PC

24-pin standard ATX connector - Compatible with 20 / 20+4 / 24 pin headers.
Features a lock button for easy power ON/OFF control.
High quality with 24Amp (per position) screw terminals.
Indicator light clearly shows the module's status.
Simple and convenient to use.
Specifications:
Type: ATX Power Supply Module
Material: Circuit Board
Weight: Approx. 50g
Size: Approx. 52 * 87mm / 2 * 3.4in
On/Off Button:
6 * +5V / 16A connectors, 10 * GND / 16A connectors, 1 * -5V / 16A connector (-5V voltage is not available on every PC power supply, it often disappears; if you do not provide this output, this output will not provide anything), 1 * -12V / 16A connector, 4 * +12V / 16A connectors, 3 * +3.3V / 16A connectors
Package List:
1 * 24/20-Pin ATX Power Supply Module
Note:
1. For the 2-pin connector, in the case of the "power connector," you want to turn the button on/off remotely (then just connect the two external buttons). This allows you to access the power button even if the adapter is installed in the arcade panel.
2. Please allow for a slight error due to manual measurement. Thank you for your kind understanding.
